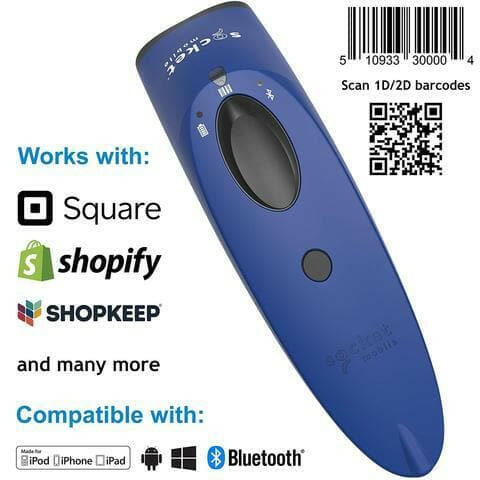

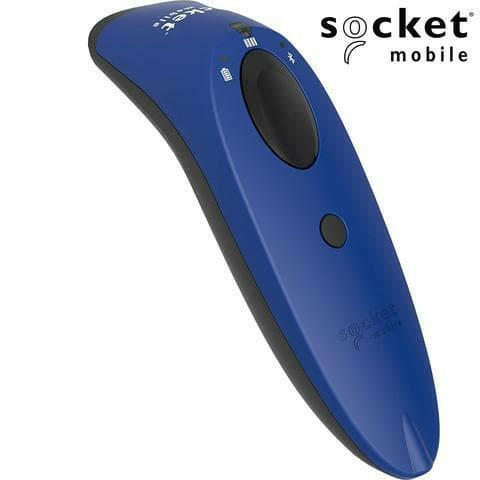

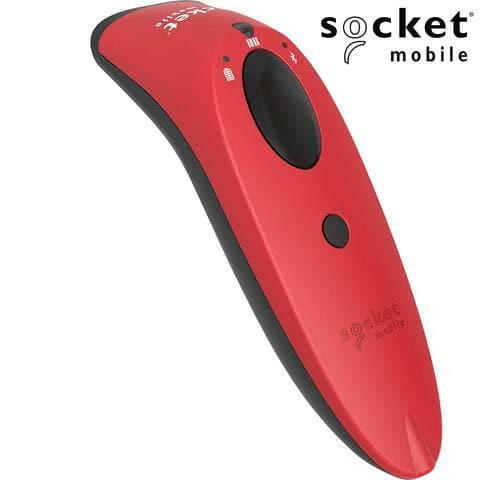

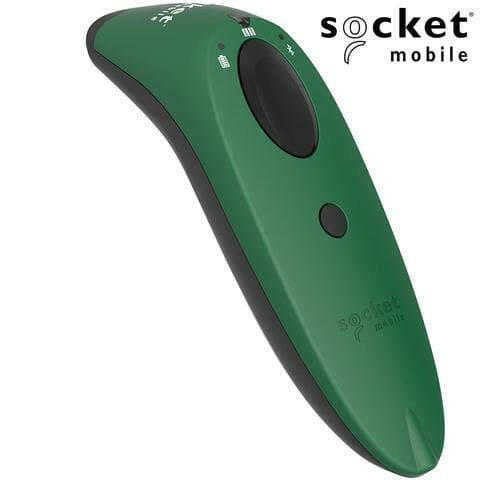

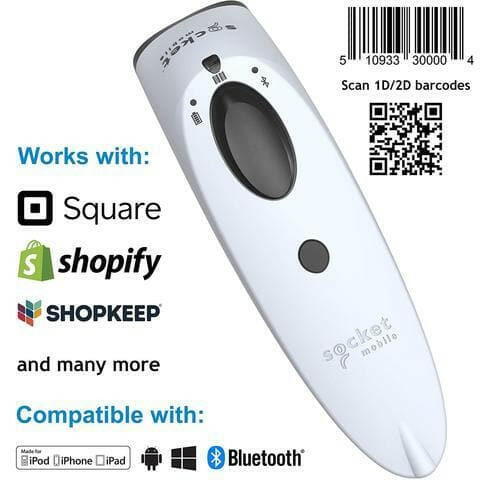

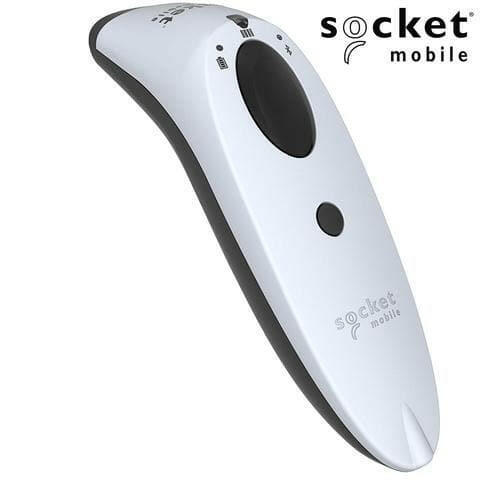

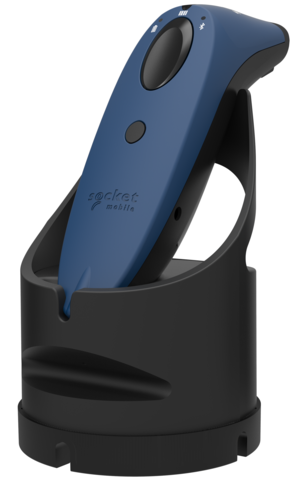

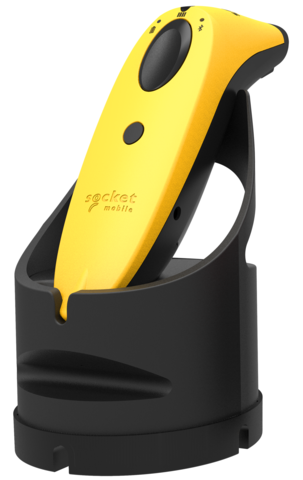

Socket Mobile SocketScan S740 Bluetooth 2D Barcode Scanner

Sale price$628.00

  • Bluetooth Wireless Technology - Connects easily to a wide range of Bluetooth enabled smartphones, tablets, notebook and desktop computers
  • Certified by Apple® for iOS devices – Guaranteed Compatibility
  • Scanning – Fast 2D & 1D omni-directional barcode and QR code scanning with highly visible and safe LED aimer
  • Exceptional Ergonomics - Small, lightweight, and fits perfectly in the hand for comfortable use over extended periods
  • User Indicators – Intuitive LEDs, beeps, and vibrations let users know battery, Bluetooth connection and scanning status
  • Long Lasting Battery – Power to last over 16 hours

The SocketScan S740 expresses itself with color and intuitive light icons to keep users informed on its connection and power status. The 2-dimensional Bluetooth barcode scanner is colorfully eye-catching, a hard worker and an affordable 2D scanner. It’s ergonomic structure and long-lasting battery withstands your entire day, working as hard as you do. The versatility of the S740’s 2D capabilities allows users to scan both 1 and 2 dimensional barcodes on screens and paper. It meets nearly anyone’s needs, compatible with all operating systems, including the most popular – Apple, Android, Windows. The S740’s dependability, flexibility and eye-appeal are the perfect combination.

Specifications

Supported Barcode Symbologies:

  • 1D Symbologies: Australia Post, Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO
  • 2D Symbologies: Aztec, Data Matrix, Maxicode, Micro PDF417, MicroQR, PDF417, QR Code

Scan Angle:
Horizontal: 42° (Default)
Vertical: 28°

Sensor Resolution:
640 horizontal x 400 vertical pixels

Print Contrast:
Down to 25%

Reading Distance:
4.5 to 49.5 cm (1.5 to 19.5 in.) Depends on barcode size, symbology, label media, Narrow and Wide ratio, scan angle

Battery:
2 AA NiMH rechargeable batteries

Charge Time:
Approx. 8 hours

Batter Life - Per Full Charge:
Active Scan Time: 70,000 scans within 9 hours based on 2 scans every 1 second
17,000 scans within 19 hours based on 1 scan every 4 seconds
Note: Battery life varies depending on ambient temperature, ambient light, and age of battery.

Ambient Light:
From 0 to 100 000 lux, From pitch black to direct sun light

Operating Temperature:
0° to 45° C (32° to 113° F)

Storage Temperature:
-40° to 70° C (-40° to 158° F)

Relative Humidity:
95% at 60° C (140° F) (non-condensing)

Drop Specifications:
4 ft. drop to linoleum

Bluetooth Radio:
Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption

Bluetooth Range:
Up to 10 m (33 ft.) depending on environment, range limit is usually due to the Host Device (phone, tablet or notebook)

Bluetooth Profiles:
Basic Mode - Human Interface Device (HID)*, Application Mode - Serial Port Profile (SPP) and Application Mode - MFi-SPP. Some Operating Systems or smartphone/tablet models may support only one profile.
*By default, the scanner is set to Basic Mode (HID). No software installation required.

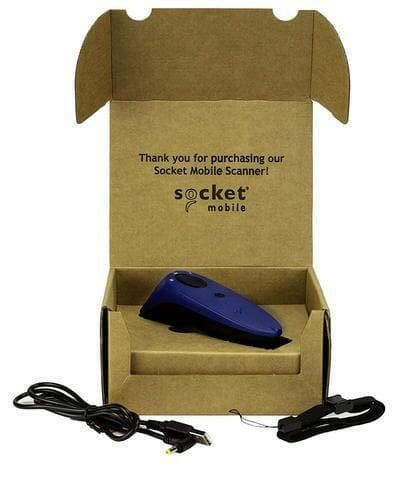

Includes

  1. S740 Barcode Scanner
  2. Rechargeable Battery
  3. USB A Male to DC Plug Cable
  4. Wrist Strap
Color: Blue
Option: Scanner Only
